17.50 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Voltage | AC 415 V 3 Phase |
| Power | 1.8 KW X 2 |
| Driven Type | Electric |
| Click to view more | |
Product Details
Automatic Grade
Automatic
Country of Origin
India
Platform Size
2.5 + 2.5 + 1.5 + 1 Meter = 7.5 Meter
Material of Platform
Aluminum/steel Platform-hot Galvanized
Balance Weight
1000 Kg
Rated Load
800 Kg
Wire Rope Size
9 Mm
Ascend Speed (working Speed)
9 - 11 M/min
Wire Rope
4 X 31 Sw-fc-9.1
Wire Rope Length
100 Meter X 4 No
Structure Weight Approx.
800 - 900kg
Counter Weight
1000 Kg
Rated Lifting Force
5kn
Height Adjustment
1.15 - 1.75 M
Front Beam Extension
1.1 - 1.7 M
Breaking
15 Nm
Safety Lock
Tilt Proof Safety Lock 2 No''s
Product Code
BUILDCONS RP-800

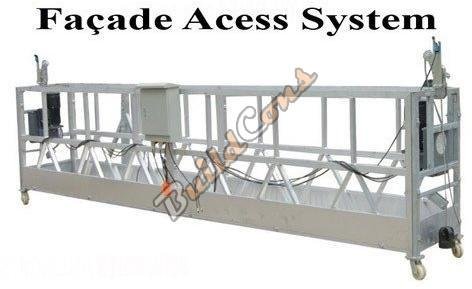

Looking for "Facade Access System" ?
